| General information |
|---|

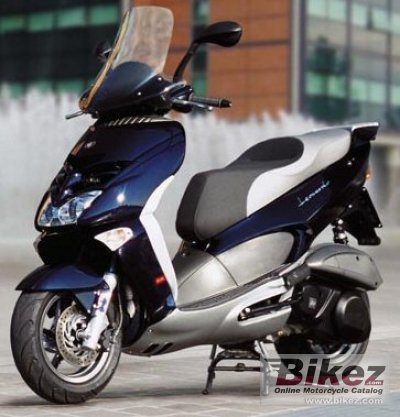

| Model: | Aprilia Leonardo 125 |
| Year: | 2005 |
| Category: | Scooter |
| Rating: | 74.7 out of 100. Show full rating and compare with other bikes |
| Engine and transmission |
|---|
| Displacement: | 124.91 ccm (7.62 cubic inches) |
| Engine type: | Single cylinder, four-stroke |
| Compression: | 12.5:1 |
| Bore x stroke: | 56.4 x 50.0 mm (2.2 x 2.0 inches) |
| Fuel system: | Carburettor. Mikuni BS 26 |
| Ignition: | Electronic |
| Lubrication system: | Wet crankcase, forced circulation with mechanical lobe pump |
| Cooling system: | Liquid |
Transmission type,
final drive: | Chain |
| Clutch: | Automatic centrifugal dry clutch |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Front single beam with superimposed double rear cradle, high tensile tubular steel |
| Front suspension: | Hydraulic telescopic fork with advanced wheel pin, 35 mm dia. sleeves. |
| Front suspension travel: | 90 mm (3.5 inches) |
| Rear suspension: | Engine with function of oscillating fork, attached to frame with double rod supported by silent-blocks |
| Rear suspension travel: | 90 mm (3.5 inches) |
| Front tyre dimensions: | 130/70-12 |
| Rear tyre dimensions: | 140/70-12 |
| Front brakes: | Single disc |
| Front brakes diameter: | 220 mm (8.7 inches) |
| Rear brakes: | Single disc |
| Rear brakes diameter: | 190 mm (7.5 inches) |
| Physical measures and capacities |
|---|
| Seat height: | 678 mm (26.7 inches) If adjustable, lowest setting. |
| Ground clearance: | 250 mm (9.8 inches) |
| Wheelbase: | 770 mm (30.3 inches) |
| Fuel capacity: | 9.30 litres (2.46 gallons) |
| Other specifications |
|---|
| Starter: | Electric |
| Color options: | Blue Main, Titan Grey |
