| General information |
|---|

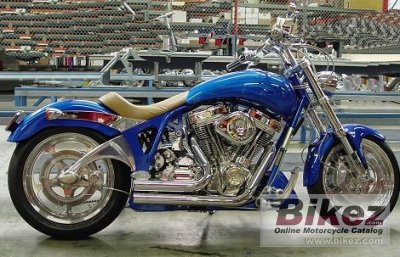

| Model: | American Eagle Falcon MS Cruiser |
| Year: | 2009 |
| Category: | Custom / cruiser |
| Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
| Safety: | See our safety campaign with the high safety rated bikes in this category.
|
| Engine and transmission |
|---|
| Displacement: | 1638.81 ccm (100.00 cubic inches) |
| Engine type: | V2 |
| Stroke: | 4 |
| Fuel system: | Carburettor |
| Ignition: | Solid state ignition box with diagnostics |
| Starter: | Electric |
| Gearbox: | 5-speed |
Transmission type
final drive: | Belt |
| Physical measures |
|---|
| Dry weight: | 265.4 kg (585.0 pounds) |
| Seat height: | 610 mm (24.0 inches) If adjustable, lowest setting. |
| Chassis and dimensions |
|---|
| Frame type: | American Eagle Mono Shock Frame |
| Rake (fork angle): | 30.0° |
| Front suspension: | 54mm Inverted Forks |
| Rear suspension: | Adjustable Mono-Shock |
| Front tyre dimensions: | 120/70-ZK17 |
| Rear tyre dimensions: | 180/55-ZR17 |
| Front brakes: | Single disc. 4-piston cali |
| Front brakes diameter: | 292 mm (11.5 inches) |
| Rear brakes: | Single disc |
| Rear brakes diameter: | 292 mm (11.5 inches) |
| Speed and acceleration |
|---|
| Other specifications |
|---|
| Comments: | Optional 2 up passenger seat. |
