| Aeon's profilation of this bike |
| On Crossland RX 400 the final transmission is moved by a Cardan joint, this means silence and low maintenance. The other technical specifications are the same of 4WD version. |
| General information |
|---|

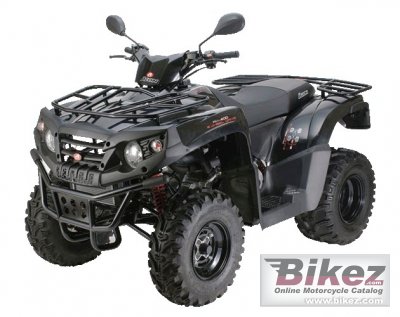

| Model: | Aeon Crossland RX 400 | | Year: | 2012 | | Category: | ATV | | Rating: | Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. | | Engine and transmission |
|---|
| Displacement: | 346.00 ccm (21.11 cubic inches) | | Engine type: | Single cylinder, four-stroke | | Power: | 20.12 HP (14.7 kW)) @ 8500 RPM | | Torque: | 30.00 Nm (3.1 kgf-m or 22.1 ft.lbs) @ 6500 RPM | | Compression: | 10.6:1 | | Bore x stroke: | 82.0 x 65.6 mm (3.2 x 2.6 inches) | | Fuel system: | Carburettor | | Lubrication system: | Wet sump | | Cooling system: | Liquid | | Gearbox: | Automatic | Transmission type,
final drive: | Shaft drive (cardan) | | Clutch: | Centrifugal clutch | | Driveline: | CVT | | Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Type High Resistance Steel Pipes | | Front suspension: | Double Swing Arm | | Front suspension travel: | 178 mm (7.0 inches) | | Rear suspension: | Swing Arm | | Rear suspension travel: | 165 mm (6.5 inches) | | Front tyre dimensions: | 23/7-10 | | Rear tyre dimensions: | 23/10-10 | | Front brakes: | Double disc | | Rear brakes: | Expanding brake (drum brake) | | Physical measures and capacities |
|---|
| Dry weight: | 230.0 kg (507.1 pounds) | | Power/weight ratio: | 0.0875 HP/kg | | Seat height: | 850 mm (33.5 inches) If adjustable, lowest setting. | | Overall height: | 1,150 mm (45.3 inches) | | Overall length: | 1,940 mm (76.4 inches) | | Overall width: | 1,080 mm (42.5 inches) | | Ground clearance: | 200 mm (7.9 inches) | | Wheelbase: | 1,230 mm (48.4 inches) | | Fuel capacity: | 14.00 litres (3.70 gallons) | | Other specifications |
|---|
| Starter: | Electric | | Carrying capacity: | Under-seat case with safety lock, Front and rear racks. | | Color options: | Red, black | | Comments: | 2 seats. | | Further information |
|---|
| Parts and accessories | Check out parts and accessories from our other partners. |
| Ask questions | Join the 12 Aeon Crossland RX 400 discussion group. |
| Insurance, loans, tests
| Check out insurance here. Search the web for dealers, loan costs, tests, customizing, etc. |
| Related bikes | List related bikes for comparison of specs |
